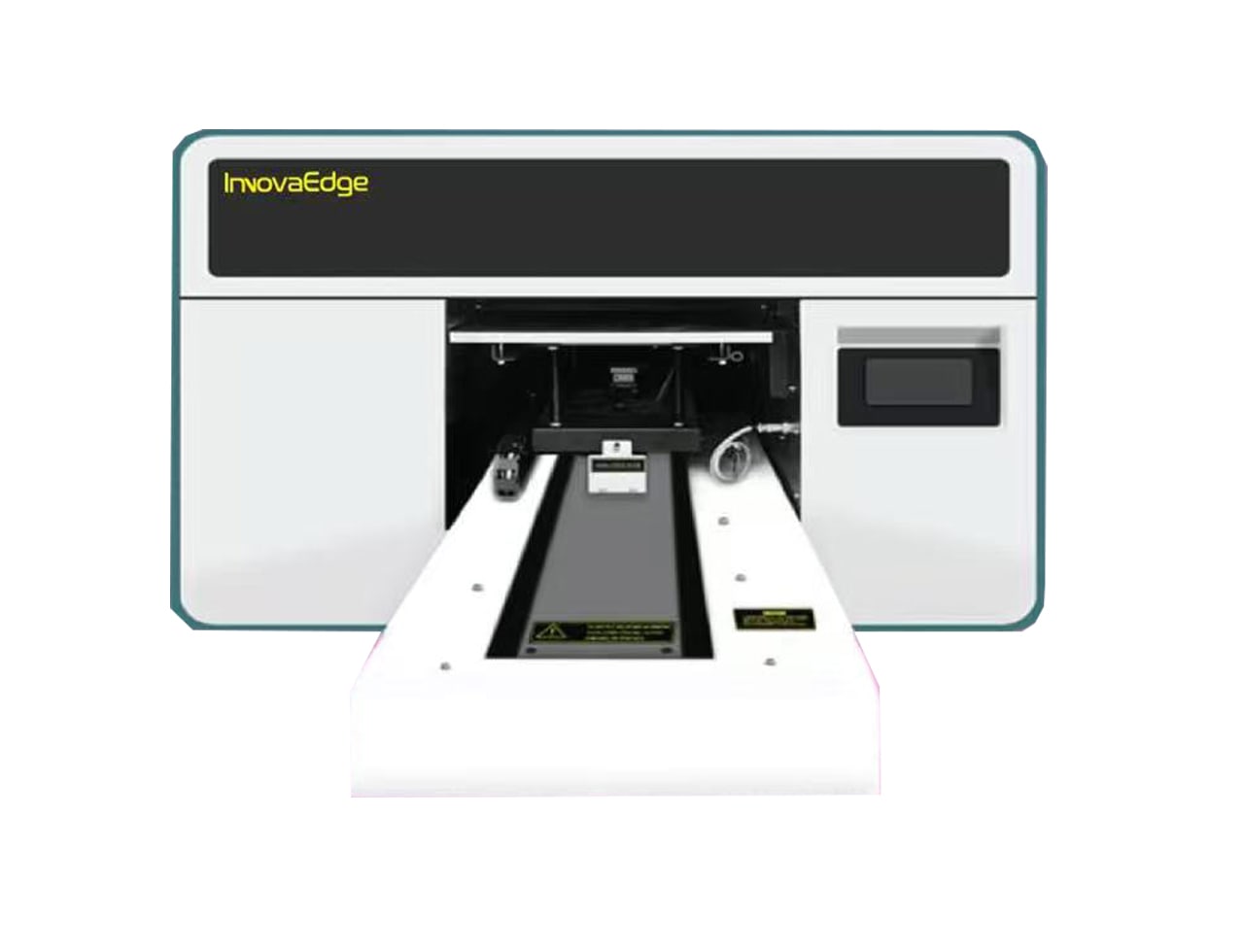

A3 UV Printer
A3 UV printer.
- Brand: Fedar
- Model: A3 UV Printer
- Category: UV Printers
- Specifications: 19
UV Printer.
Technical Specifications
Print System
| Printhead Type | Epson i3200(8)-U1HD Grey Scale Micro Piezo Printhead |
|---|---|
| Printhead Quantity | 1 pcs |
Printing
| Print Size | Flatbed: 420mm*297mm(L*W) |
|---|---|
| Printing Speed Range | 0.28m2/h~3m2/h |
| Print Thickness | 1mm-90mm |
Ink & Color
| Ink Type | Environment-friendly UV Curing Ink |
|---|---|
| Ink Color | Standard: C M Y K W Varnish |
| Color Configuration | Optional: Y M C K Lc Lm+W |
Media Handling
| Media Type | Acrylic, Aluminum Board, Ceramic Tile, Glass, Wood Board, Leather, etc. |
|---|---|
| RTR Size | 150mm*290mm(Diameter*W) |
| Cylinder Size | 30-90mm*230mm(Diameter*W) |
Drying & Heating
| Heating Mode | Rubber Roller Heating |
|---|
Software
| RIP Software | Maintop, RIIN, PP, etc. |
|---|---|
| Image Format | TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc. |
| Computer System | Computer System: Win10,64 bit; Gigabit Ethernet Port |
Electrical
| Power Supply | 220V50HZ/60HZ/500W |
|---|
Environment
| Operating Environment | Temp.:18°C-28°C, Humidity:40%-60% |
|---|
Physical
| Machine Dimensions | 1745*918*1480mm |
|---|---|
| Machine Weight | 80KG/150kg |
