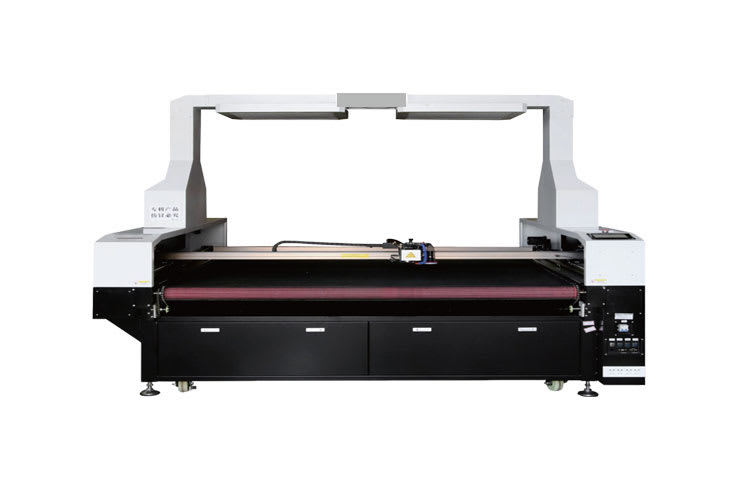

Camera Vision Laser Fabric Cutting Machine
Camera vision CO2 laser cutting for garments, flags, curtains and home textiles.
- Category: Laser Cutting Machines
- Specifications: 11
High-speed camera vision laser cutting machine for clothing, home textiles and advertising materials. The published product sheet describes a 200W CO2 laser tube, a working area up to 2 × 3m, and dual closed-loop servo drive. Applications include advertising fabric, flags, curtains, tents, bedding and garments. Technical details: Canon camera; water cooling; repeat positioning accuracy ±0.05mm; full servo motor drive; DXF, PDF, PLT and AI file support; USB data transfer; operating temperature 0–45°C; operating humidity 5–95%; power supply 110–220V, 50–60Hz.

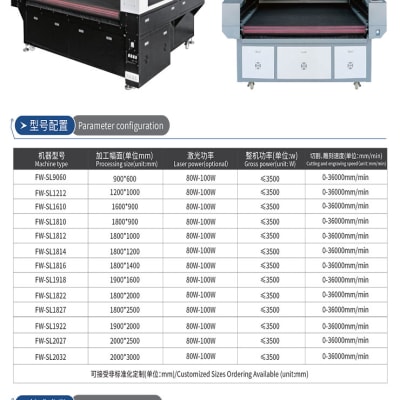

Technical Specifications
Software
| File Format | DXF, PDF, PLT, AI |
|---|
Electrical
| Power Supply | 110–220V, 50–60Hz |
|---|
Environment
| Operating Temperature | 0–45°C |
|---|---|
| Operating Humidity | 5–95% |
Product information
| Laser Type | CO2 |
|---|---|
| Laser Power | 200 W |
| Camera Brand | Canon |
| Cooling Mode | Water cooling |
| Working Area | Up to 2 × 3m |
| Positioning Accuracy | ±0.05mm |
| Driving System | Full servo motor |
