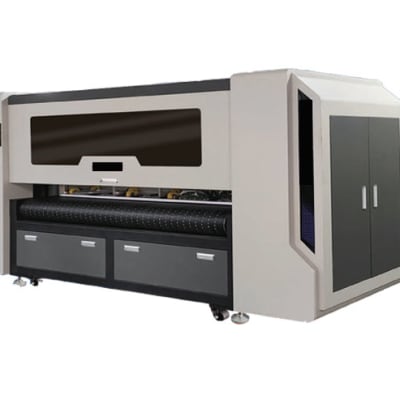

InnovaEdge IE1200 Carton Packaging Printer
- Model: IE1200
- Category: Packaging Printing Machines
- Specifications: 14
InnovaEdge IE1200 Multi Pass series digital inkjet printing machine for corrugated paper packaging. The machine supports short-run and variable artwork production without printing plates. Applications shown include corrugated paper, honeycomb paper, kraft paper and thin wood. The published equipment sheet lists Epson 3200 printheads in 8, 12 or 16-head configurations, aqueous dye or pigment ink, and production speeds of 230–550m²/h depending on configuration and pattern. It lists media thickness of 1.5–20mm and width options of 1800/2500mm. Available equipment dimensions and weights depend on configuration. Features include automatic receiving, automatic cleaning and insulation, linear motor servo drive, and front-end or customizable UV drying.
See It Running
Technical Specifications
| Printhead Type | Epson 3200 |
|---|
| Print Resolution | 360×600, 360×1200, 360×2400dpi |
|---|---|
| Printing Speed Range | 230–550m²/h, depending on configuration and pattern |
| Ink Type | Aqueous dye or pigment ink |
|---|
| Print Media | Corrugated paper, honeycomb paper, kraft paper, thin wood |
|---|
| RIP Software | MainTop / Printer Manager |
|---|---|
| File Format | PDF, JPEG, TIFF, CDR, AI, EPS |
| Power Supply | Approximately 12kW; AC380V ±10%, 50/60Hz, ≥32A |
|---|
| Operating Temperature | 15–30°C |
|---|---|
| Operating Humidity | 40–70% |
| Head Configuration | 8 / 12 / 16 heads |
|---|---|
| Media Thickness | 1.5–20mm |
| Media Width | 1800 / 2500mm |
| Motor System | Linear motor servo system |
