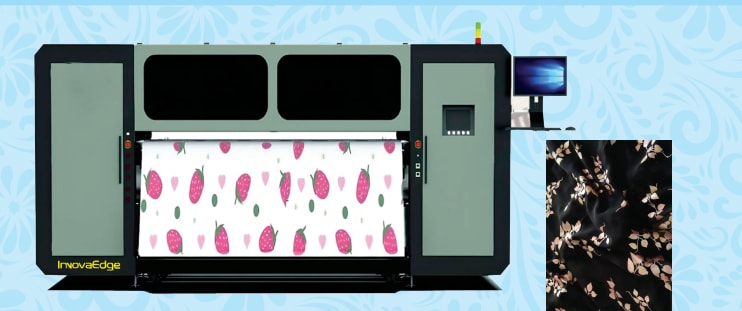

InnovaEdge KM-2000
Digital foil printer machine.
- Brand: InnovaEdge
- Model: KM-2000
- Category: Digital Foil Printers
- Specifications: 16
Technical Specifications
General
| Cleaning Function | Siphon mode/positive pressure ink mode |
|---|
Print System
| Printhead Type | i3200-A1 |
|---|---|
| Nozzle Quantity | 16 pcs |
Printing
| Output Size | 2000 mm |
|---|---|
| Printing Speed | 650 m²/h (1 pass) |
Media Handling
| Applicable Media | Thermal transfer paper |
|---|
Drying & Heating
| Drying System | four groups of high-power drying |
|---|
Software
| RIP Software | Ruiyin/Montai/Neostampa |
|---|
Electrical
| Power Supply | AC220V (± 10%); 50HZ |
|---|---|
| Machine Power | 4800 W |
| Dryer Power | 12000 W |
Environment
| Operating Environment | temperature:20-30C; humidity:45-65% |
|---|
Physical
| Machine Dimensions | Host size: 4100*MM1210MM*1800MM | 10,000-meter retracting and unwinding system size: 2330MM*1350MM*1100MM |
|---|---|
| Component Weight | Main machine weight: 1600KG | 10,000-meter retracting and unwinding system weight:1000 KG |
Packaging
| Wooden Box Dimensions | Host: 4300MM*1480MM*2100MM | 10,000-meter retracting and unloading system: 1400MM*2740MM*1440MM |
|---|---|
| Wood Pallet Dimensions | Host: 4250MM*1430MM | 10,000-meter retracting and unwinding system: 1550MM*2690MM |
