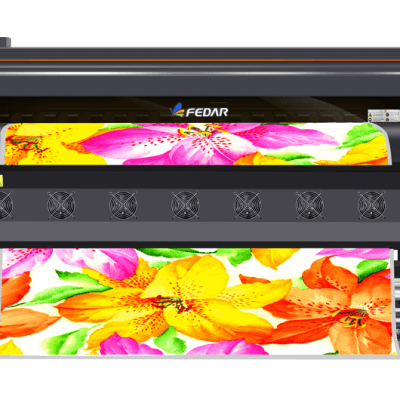

Fedar FD5193E
1.9 m dye-sublimation textile printer with three Epson I3200-A1 printheads.
- Brand: Fedar
- Model: FD5193E
- Category: Sublimation Printers
- Specifications: 7
The Fedar FD5193E prints onto transfer paper using CMYK dye-sublimation ink. Its three Epson I3200-A1 printheads support a maximum printing width of 1900 mm. Manufacturer-rated speeds: 120 m²/h at 2 pass, 85 m²/h at 3 pass, 65 m²/h at 4 pass and 45 m²/h at 6 pass. Output depends on the selected mode and production conditions. Features include an automatic feeding system, tension-controlled take-up, external air-heat drying, and automatic head cleaning and moisture protection. Suitable software includes Maintop, Photoprint, Onyx, Wasatch and NeoStampa.
Technical Specifications
Print System
| Printhead Model | Epson I3200-A1 |
|---|---|
| Printhead Quantity | 3 pcs |
Printing
| Max Print Width | 1900 mm |
|---|---|
| Printing Speed Range | 2 pass: 120 m²/h; 3 pass: 85 m²/h; 4 pass: 65 m²/h; 6 pass: 45 m²/h |
Ink & Color
| Ink Type | Dye sublimation |
|---|---|
| Ink Color | CMYK |
Media Handling
| Print Media | Transfer paper |
|---|
