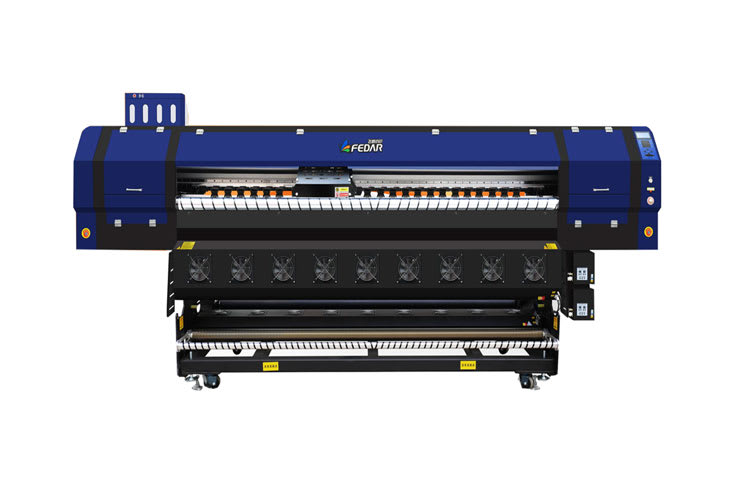

Fedar FD5328E 3.2m Sublimation Printer
3.2m sublimation printer with eight Epson i3200-A1 heads and a listed one-pass speed of 400m²/h.
- Brand: Fedar
- Model: FD5328E
- Category: Sublimation Printers
- Specifications: 14
Fedar FD5328E digital sublimation textile printer with eight Epson i3200-A1 printheads and a maximum printing width of 3200mm. The product sheet specifies speeds of 400m²/h at one pass and 200m²/h at two passes. Features include adjustable 2–5mm print height, CMYK double four-colour printing, dual-drive tension take-up, automatic air-shaft feeding, an external intelligent air-heat drying system, siphon positive-pressure ink supply, automatic head cleaning and moisturizing, and Gigabit LAN connectivity. RIP software listed: Maintop 6.0, Photoprint 12 and Onyx.

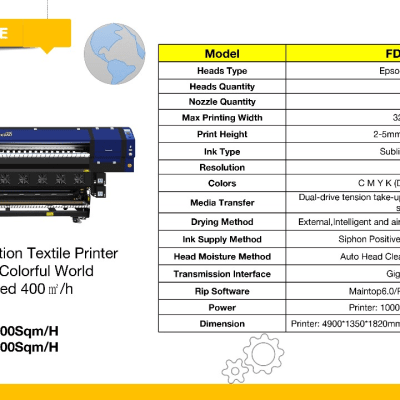

Technical Specifications
Print System
| Printhead Type | Epson i3200-A1 |
|---|---|
| Printhead Quantity | 8 pcs |
| Nozzle Quantity | 3200 pcs |
Printing
| Max Print Width | 3200 mm |
|---|---|
| Print Height | 2–5mm adjustable |
| Printing Speed Range | 1 pass: 400m²/h; 2 pass: 200m²/h |
Ink & Color
| Ink Type | Sublimation ink |
|---|---|
| Ink Color | CMYK (double four colours) |
Software
| RIP Software | Maintop 6.0 / Photoprint 12 / Onyx |
|---|
Connectivity
| Transmission Interface | Gigabit LAN |
|---|
Physical
| Machine Dimensions | 4900 × 1350 × 1820mm |
|---|
Packaging
| Package Dimensions | 4450 × 1150 × 1870mm |
|---|
Product information
| Print Colors | CMYK (double four colours) |
|---|---|
| Power | Printer: 1000W; dryer: 7200W |
